Shenzhen Easloc Technology Co., Ltd.
Smart Door Lock, Open the Smart Age
Place of Origin: | Guangdong, China |
Brand Name: | Easloc |
Certification: | CE/ FCC |
Model Number: | DSR108 |
Minimum Order Quantity: | 10PCS |
---|---|
Price: | US $20 - 30 / Piece |
Packaging Details: | 1pc / box,10pcs / carton Box Size: 33.5*17*10 cm Carton Size: 87*35*23 cm |
Delivery Time: | 3-8 work days |
Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 30000 pcs per month |
Product Name: | Digital Hotel Smart Key Card Door Lock | Material: | Stainless Steel |
---|---|---|---|
Color: | Black/ Silver/ Gold/ Red Bronze | Size: | 290*77mm |
Unlocking Way: | Card+Mechanical Key | Card Type: | 125kHz/13.56Khz Card |
Door Thickness: | 38-60mm | Logo: | Accept Customize LOGO |
High Light: | 13.56Khz keyless digital door lock,60mm keyless digital door lock,60mm magnetic key card lock |
Electric Magnetic Key Card Door Lock with Smart Handle for Hotel Guesthouse
1. Main Functions
1. 2 unlocking functions, card and key
2. Reservation function: pre set card enabling time to facilitate group reservation.
3. Emergency function: emergency card can open room in any state.
4. Wrong try-out function: swipe uncorrect card, don't read the card
5. Sensitve card reading area, 3cm distance between card and lock
2. Free Hotel Lock System
Basic (necessary) components of lock system include:
Software: It is management system. Work on window XP, 7. English-language is possible. Simple and intuitive. Compatible with most of the common property management systems(PMS) interface.
Computer: It is used to install lock management software, prepared by hotel.
Card reader : Device for reading and encoding(issue) the card. USB port. Serveral encoders can work simultaneously in a network.
Cards : One Lock need at least one pcs card, for opend door. 100,000 times durable.
Lock : Install onto the door. Independent, wireless, battery-operated. It stores latest 220 events. Perfect reading. Advanced security performance.
Optical components of lock system include:
Data Collector: It is used to collect the unlocking records from the locks, and read on the computer.
Energy-saving switch: device allow the key card to turn on the lighting system and air controller of the room.
Elevator/ Access reader: device for controlling the elevator or public access.

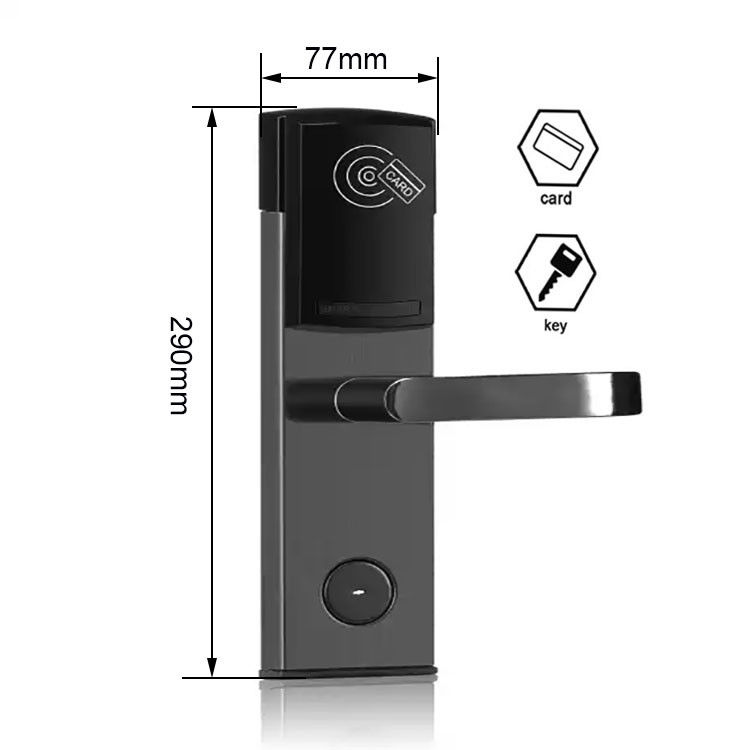

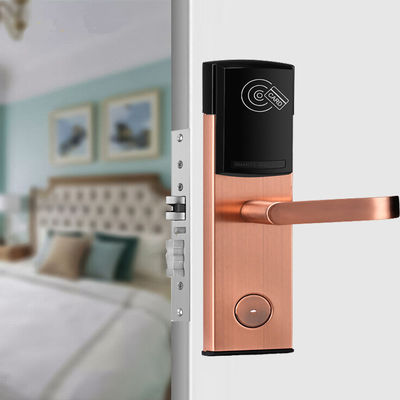

3. Detailed Image
4. Product Parameters
Product Name | digital hotel smart key card door lock |
Model Number | DSR108 |
Color | Black/ Silver/ Gold/ Red Bronze |
Size | 290*77mm |
Ways to Unlock | Card, Mechanical Key |
Card Type | Temic T5557, or Mifare-1 card S50 |
Mortise | ANSI Standard Mortise |
System | Free Hotel Management System |
Door Thickness | 38-48mm |
Power Supply | 6V (4x AA Batteries) |
Battery Life Span | Support 10,000 Times of Locking & Unlocking Operation |
Working Temperature | -20℃-70℃ |
Relative Humidity | 20%-90% |
Warranty | 2 years |
