Smart Door Lock, Open the Smart Age



Home ProductsKey Card Door Locks

SDK Card Reader Door Lock System 4x AA Hotel Card Door Entry Systems

SDK Card Reader Door Lock System 4x AA Hotel Card Door Entry Systems

  • SDK Card Reader Door Lock System 4x AA Hotel Card Door Entry Systems
  • SDK Card Reader Door Lock System 4x AA Hotel Card Door Entry Systems
SDK Card Reader Door Lock System 4x AA Hotel Card Door Entry Systems
Product Details:
Place of Origin: Guangdong, China
Brand Name: Easloc
Certification: CE/ FCC
Model Number: DSR727
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: US $25 - 35 / Piece
Packaging Details: 1pc / box,10pcs / carton Box Size: 33.5*17*10 cm Carton Size: 87*35*23 cm
Delivery Time: 3-5 work days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 pcs per month
Contact Now
Detailed Product Description
Product Name: RFID Hotel Door Lock Material: Aluminium Alloy
Color: Gold/ Silver/ Red Bronze/ Black Ways To Unlock: Card+Mechanical Key
Reaction Time: <0.1s Working Voltage: 6V (4x AA Batteries)
Network: SDK Logo: Accept Customize LOGO
High Light:

SDK card reader door lock system

,

4x AA card reader door lock system

,

4x AA hotel card door entry systems

Key Card Smart Hotel Room Door Locks with Hotel Management System


1. Main Feature


1. Unlocking by RFID card + mechanical key in emergency



2. Support card type: Temic T5557 card, 125KHz or M1fare S50 card, 13.56MHz



3. Powered by 4pcs AA Alkaline battery



4. Battery life: approx 1 year



5. Management classification: support 14 types of cards including authorization card, clock card, room number setting card, master card, emergency card, floor card, building card, guest card, temporary card, house keeping card, alarm card, no-disturbing card etc



6. Hotel software interface with other PMS (API / SDK can be provided)



2. Product Parameters



Product Name RFID Hotel Door Lock
Model Number DSR727
Color Gold/ Silver/ Red bronze/ Black
Size 300*75mm
Ways to Unlock Card, Mechanical Key
Card Type Temic T5557, or Mifare-1 card S50
Mortise ANSI Standard Mortise
System Free Hotel Management System
Door Thickness 38-48mm
Power Supply 6V (4x AA Batteries)
Battery Life Span Support 10,000 Times of Locking & Unlocking Operation
Working Temperature -20℃-70℃
Relative Humidity 20%-90%
Warranty​ 2 years





3. Hotel Lock System

SDK Card Reader Door Lock System 4x AA Hotel Card Door Entry Systems 0









Basic components of hotel lock system include
Software Send you for free, work on window XP7, 8, 8, 9
Computer It is used to install lock management software, prepared by hotel
Card Encoder Device for reading and encoding the card, USB port
Card One lock need at least one card, for opening door
Lock Install on the door, battery operated, advanced security performance
Optional Components
Energy-saving Switch Device allow the card to turn on the lighting system of the room
Data Collector It is used to collect the unlocking records from the locks and read on the computer
Elevator/ Access Reader Device for controlling the elevator or public access



SDK Card Reader Door Lock System 4x AA Hotel Card Door Entry Systems 1

SDK Card Reader Door Lock System 4x AA Hotel Card Door Entry Systems 2



4. Picture

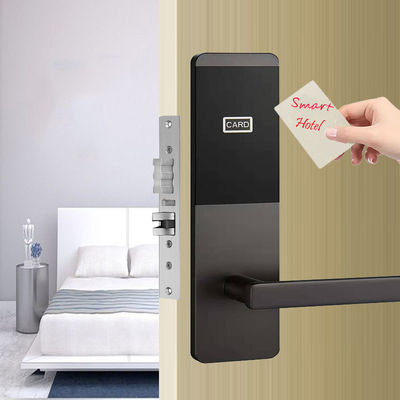

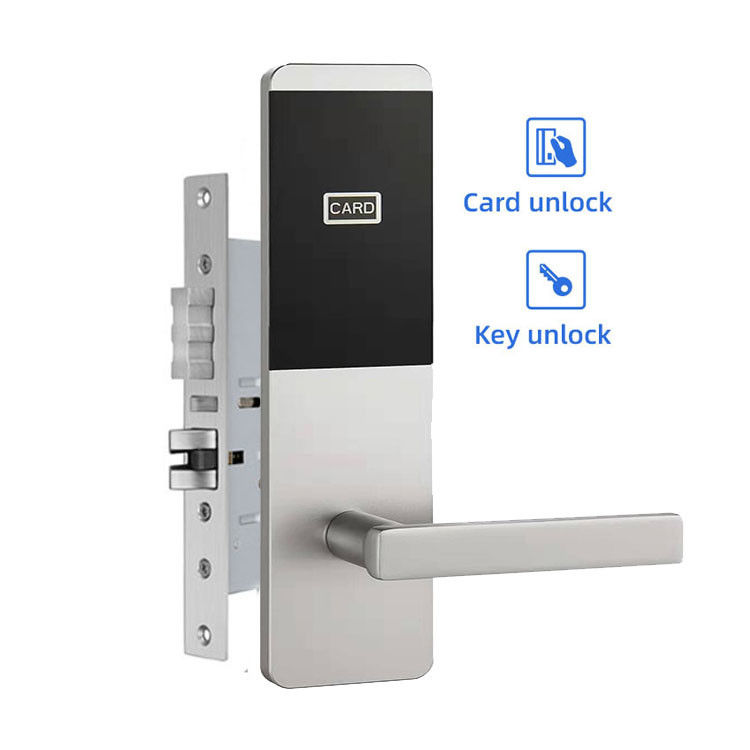

SDK Card Reader Door Lock System 4x AA Hotel Card Door Entry Systems 3

SDK Card Reader Door Lock System 4x AA Hotel Card Door Entry Systems 4



SDK Card Reader Door Lock System 4x AA Hotel Card Door Entry Systems 5
