Shenzhen Easloc Technology Co., Ltd.
Smart Door Lock, Open the Smart Age
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | Easloc |
| Model Number: | DSR820 |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | US $30- 40/ Piece |
| Packaging Details: | 1pc / box,10pcs / carton Box Size: 33.5*17*10 cm Carton Size: 87*35*23 cm |
| Delivery Time: | 3-8 work days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 pcs per month |
| Certification: | CE, FCC | Product Name: | Hotel Card Door Lock |
|---|---|---|---|
| Material: | Zinc Alloy | Color: | Gold |
| Size: | 280*75mm | Unlocking Methods: | Card/ Key |
| Card Frequency: | 13.56MHZ/ 125KHz | Warranty: | 2 Years |
Gold Color Mifare Hotel Room Key Card Door Locks with Free Management Software System
1. Hotel Door Lock Information
1) Suitable for hotel, motel, guesthouse and so on, issue card to guests
2) TEMIC T5557 card/Mifare 1 card/EM card required
3) Zinc alloy panel, elegant and rigorous, reliability
4) Low consume, high sensitive RFID Technology PCB board
5) ANSI Lock Mortise with 5 latches Structure
6) Powered by 4 pcs AA battery for 10-12 months' life

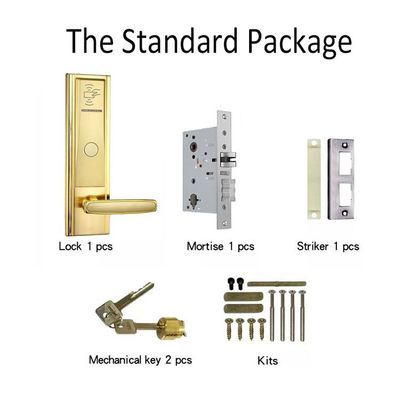

2. Hotel Door Lock Purchase Guide
1. Lock (qty = guest room)---For open the door
2. Encoder (2pcs/hotel ) ---For issuing all kinds of cards , 1 for backup
3. Energy Saving Switch (qty = guest room, optional by customers)---To get the power
4. Cards (qty = 3 times of guest room)-----For open the lock
5. Data collector card 1pcs/hotel, optional by customers)----For getting the time and times of the entrance information from the lock
6. Free hotel lock software
3. Hotel Door Lock Parameters
| Product Name | Hotel Card Door Lock |
| Model Number | DSR820 |
| Color | Gold |
| Size | 280*75mm |
| Ways to Unlock | Card, Mechanical Key |
| Card Type | Temic T5557, or Mifare-1 card S50 |
| Mortise | ANSI Standard Mortise |
| System | Free Hotel Management System |
| Door Thickness | 38-48mm |
| Power Supply | 6V (4x AA Batteries) |
| Battery Life Span | Support 10,000 Times of Locking & Unlocking Operation |
| Working Temperature | -20℃-70℃ |
| Relative Humidity | 20%-90% |
| Warranty | 2 years |

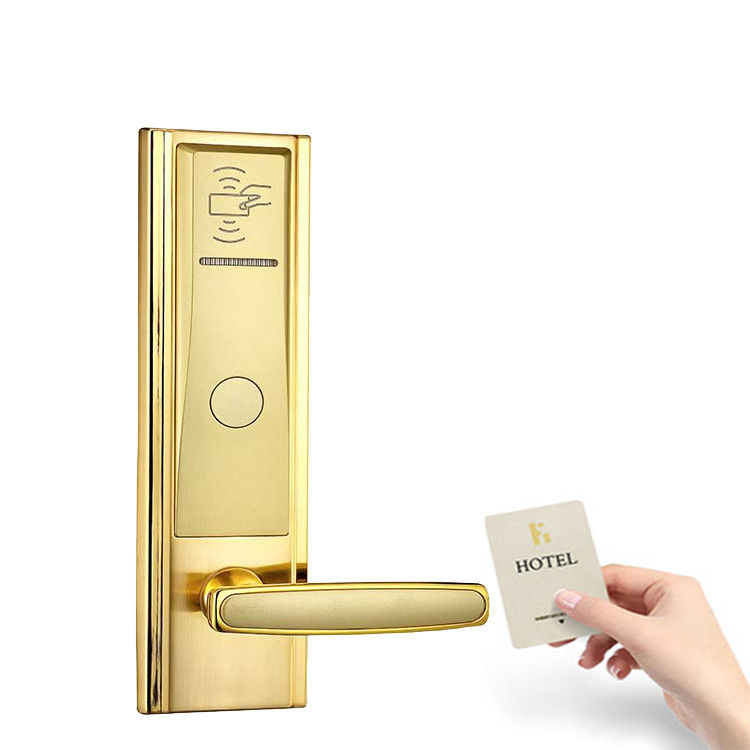

4. Hotel Door Lock Images

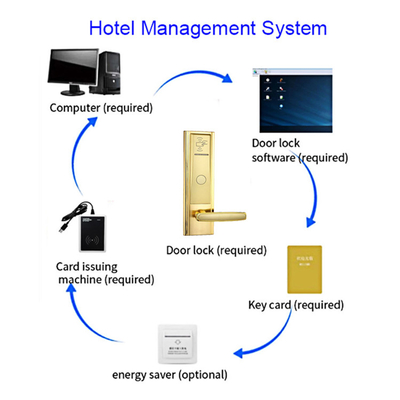

5. Hotel Door Lock System
| Basic components of hotel lock system include | |
| Software | Send you for free, work on window XP7, 8, 8, 9 |
| Computer | It is used to install lock management software, prepared by hotel |
| Card Encoder | Device for reading and encoding the card, USB port |
| Card | One lock need at least one card, for opening door |
| Lock | Install on the door, battery operated, advanced security performance |
| Optional Components | |
| Energy-saving Switch | Device allow the card to turn on the lighting system of the room |
| Data Collector | It is used to collect the unlocking records from the locks and read on the computer |
| Elevator/ Access Reader | Device for controlling the elevator or public access |
